Overview Dashboard



In addition, you can set custom values for the KPIs used to determine the thresholds for improvement opportunities and performance analysis, such as zero CIRR, low rebuffering, and high average bitrate levels, for customized streaming activity and performance analysis.

When interpreting your audience data, keep in mind:

• SPI Streams show the Conviva monitored streaming sessions which contributed to the SPI calculation based on your SPI threshold settings. Sessions that exited before the video started when the viewer did not wait a significant time and sessions impacted by business logic errors are not included in the SPI streams.

• Abandonment and Startup Error are calculated as a percentage of all attempts, including attempts during which viewers had early abandonment.

• Plays show the video sessions during which the viewer saw at least the first frame of the video.

• Concurrent Plays show the maximum number of simultaneously active sessions during a given interval. Active sessions have at least one played video frame, and do not include unsuccessful play attempts or sessions that had ended.

• Benchmarks are based on Conviva’s OTT streaming intelligence and industry-leading video streaming coverage across publishers. The benchmark is defined as the 95th percentile (for example, 5th best publisher out of 100) and determined for each country.

Note:  If sufficient traffic and unique customers are not available to establish a meaningful benchmark value for a specific cohort, the benchmark data displays as NA. This can happen when there are insufficient SPI streams within a cohort or the SPI scores within the cohort are too low to establish a meaningful benchmark; for example all SPI scores are less than 60.

You can also apply filters to focus your overview on specific streaming segments from any saved Conviva filter setting. Click All Traffic to access filter selection.

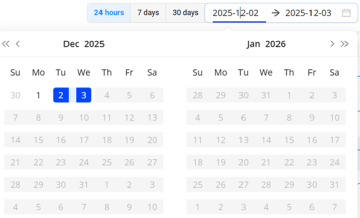

Use the Time picker to select the desired time range.

Use the Kebab icon to Save and Share the page. After clicking Share, Video saves a snapshot of the item for 30 days and produces a link that you can share by email, by Slack message, or by pasting it into another document.

When a user opens the link and logs in to Video, they see an exact copy of the item you sent. They can change how Video presents the data in the snapshot, but cannot change which data are part of the snapshot. For example, the user can deselect metrics to hide them, but they can't change the dimensions or time interval.

Note: The Save option is only available for shared dashboards.

You can also set this page as your default page.

The Experience Overview widgets provide summaries of streaming activity, your SPI, improvement opportunities, and dimensional analysis.

Audience

Note: Clicking an Audience metric sorts the dimensional analysis by that metric, such as Plays.

Streaming Performance Index

Use the SPI to view a visual indicator of your KPIs and metric performance over the selected period. Also, quickly determine the number and percent of impacted streams. A stream is impacted when it fails to meet one or more of the KPI settings. The specific KPI performance of streams is shown in Improvement Opportunities.

SPI Streams refers to all Conviva monitored streaming sessions which contributed to the SPI calculation. Exits before the video started when the viewer did not wait a significant time and sessions impacted by business logic errors are not accounted for the SPI calculation. The Streaming Performance Index and SPI Streams appear as metrics in Trends and other dashboards.

Conviva formulates a unified streaming performance KPI based on the percentage of streaming sessions with good or best viewing experience. This KPI represents the Conviva Streaming Performance Index, and is based on the percentage of streams with:

• No errors (VSF-T or VPF-T)

• No or very low Rebuffering (using CIRR)

• Acceptable picture quality based on average bitrate for different screen sizes

• Acceptable Video Start Time

• No EBVS if the viewer was waiting a long time before exiting.

Conviva provides KPI settings based on Good and Best performance. You can also set custom KPI settings to match your specific performance goals.

Click Streams, Viewers and Devices to toggle the display for analysis of impacts across video streams, viewers, and devices.



This data shows an hourly breakdown of the streams, viewers, and devices with at least 1 impacted session (SPI Stream) within the hour interval. Hover over an hourly interval to displayed the data details. Click an interval of Viewers to display the list of impacted viewers during that interval.

For streams, the engagement difference indicates a weighted comparison between the impacted stream playing times of good and bad sessions, with high engagement for a majority of good playing time and low engagement for a majority of bad playing time.

This is based on the following condition:

GoodSessionAverageLifePlayingTimeMins > BadSessionAverageLifePlayingTimeMins * 1.1

For example,

The GoodSessionAverageLifePlayingTimeMins is 22.8 and BadSessionAverageLifePlayingTimeMins is 5.72, the above condition is true, and the Impacted stream average playing time value is displayed.

The Impacted stream widget shows the value only when the number of good sessions exceeds bad sessions by 10 percent; else, it displays the message "Engagement difference low."

Impacted and non-impacted streaming times show the average playing times of the related sessions in minutes. For example, impacted streaming time is calculated as the sum of impacted session minutes in the current interval divided by the number of impacted sessions.

The benchmark value from the previous month displays when the filter is set to a supported cohort, such as country and device. This benchmark value enables the comparison of the percentage of your streams that met the SPI KPI settings with those of the 95th percentile of the cohort. A significant difference, for example 6.7% ( 94.4 - 87.7) indicates the percentage of your streams to target for performance improvements.

When significant engagement differences occur in stream playing time due to performance impacts, the streams tab also displays the average playing time of impacted and non-impacted streams.

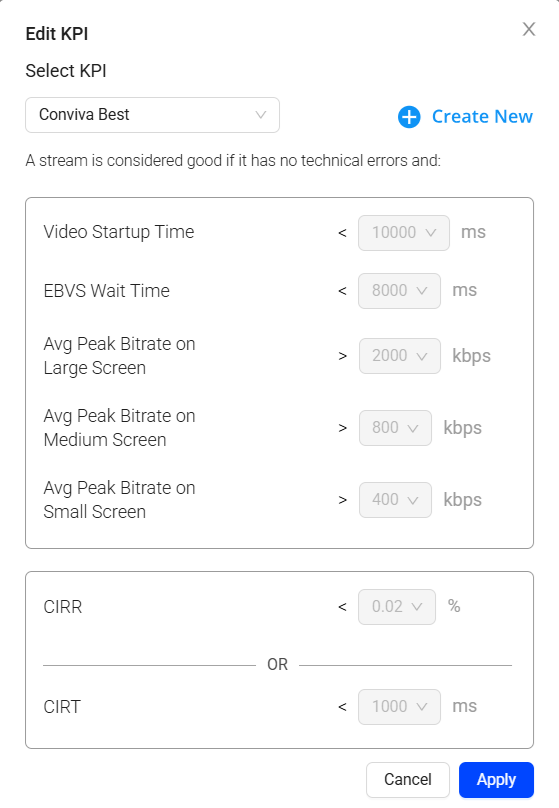

Use the default threshold settings or adjust the settings for customized streaming activity and performance analysis, such as zero CIRR, low rebuffering, and high average bitrate levels. Click Edit in the kebab icon to update the KPI settings.



Use a Conviva default set of criteria for comparison with other OTT streams based on satisfactory stream performance:

For metric definitions, see the Metric Dictionary.

Note: Clicking the SPI meter sorts the dimensional analysis by the SPI streams with color codes for the SPI index values based on the percentage for streams that pass the SPI KPI settings: above 80% green, between 80 and 60 percent yellow, below 60 percent red.

Note:  Because an impacted stream can be associated with several improvement opportunities, such as high rebuffering leading to playback error (VPF-T), the percent of impacted sessions may not be the same as the sum of improvement opportunities percentages.

Impacted Streams

Improvement Opportunities

Improvement Opportunities Metrics:

High Rebuffering shows the percent of Ended Plays with a high Connection Induced Rebuffing Ratio (CIRR) or Connection Induced Rebuffering Time (CIRT).

High Startup Time shows the percent of Plays (at least 1 frame of video displayed) that took too long for the video to start.

Playback Error shows the percent of Ended Plays that ended due to a technical error (VPF-T).

Low Bitrate shows the percent of Ended Plays that had a low bitrate, as measured against different bitrate thresholds per screen size.

Startup Error shows the percent of all play attempts that failed to start due to a technical error (VSF-T).

Abandonment shows the percent of all play attempts that did not play after the user waited a long time for the video to start, by default set as EBVS wait time < 10sec for Conviva Good and EBVS wait time < 8sec for Conviva Best.



Note: Clicking an Improvement Opportunity sorts the dimensional analysis by that performance indicator, such as High Rebuffering.

Ads

Selecting Ads allows you to compare your overall startup and playback metrics across sessions with and without ads. Ads are broken out using sessions with and without pre-roll ads for the startup metrics, and sessions with and with mid-roll and post-roll ads for playback metrics.

Comparing sessions with and without ads requires Conviva Stream Sensor 4.x (Roku 3.x) with ad integrations.

Note: For server-side ads, a pre-roll ad can occur if a viewer joins a video and views an ad within 10 seconds of joining the video stream.

Use the Attempts and Ended Plays metrics to determine whether the level of traffic is sufficient.

Benchmark

Selecting the Benchmark icon displays your performance data and the 95th percentile performance across the selected cohort .

Note: The 95th percentile represents the value that exceeds 95% of the other values in the cohort distribution. In this example, the top 5% of the cohort had 1.48% or less sessions with high rebuffering. The benchmark values represent the top performances across all publishers in the cohort and it's common that different publishers excel at different performance levels.

Note: If sufficient traffic and unique customers are not available to establish a meaningful benchmark value for a specific cohort, the benchmark data displays as NA. This can happen when there are insufficient SPI streams within a cohort or the SPI scores within the cohort are too low to establish a meaningful benchmark; for example all SPI scores are less than 60.

Basic Benchmark

The basic benchmark supports 3 dimensions:

• Country

• Device Name

• Content Category

Benchmark Calculation

Advance Benchmark (BETA)

Enhances the benchmark from three dimensions to 16 dimensions (marked with benchmark icon () starting with Country level and followed by the combination of the other dimensions (provided they meet the minimum traffic thresholds and sanitization rule). If a Benchmark combination does not satisfy the criteria, the dimension reading displays NA. The supported dimensions include:

• Geo Related: Country (Required first benchmark), State, DMA (US), City

• Device Related: Device Name, Device Hardware Type, Device Marketing Name, Device Operating System, Device Operating System Family, Device Operating System Version, Browser Name, Browser Version

• Content: Content Category

• Connectivity: ASN, ISP, Connection Type

For example, the iPadOS and windows of Device Operating System Family are under performing the Industry Benchmark. Further drill down to Tizen 5.0 Device Operating System Version to see the Top Improvement Opportunity is Low Bitrate.

Dimensional Analysis

Select dimensions to analyze your streaming performance across your most critical dimensions, such browsers, devices, and traffic categories. By default, dimensions are sorted by the number of streams and your SPI. You can also sort the dimension entries by clicking an Improvement Opportunities, such as High Rebuffering, as well as Plays and Concurrent Plays.

Click dimensional entries to create logical AND filters, such as Live in Content Category and Chrome in Browser Name to analyze Chrome Live traffic across the Cities dimension.

The Filter box displays the current filter settings.

Click a measure in the Improvement Opportunities widget to toggle the sort order by that measurement. In this example, the SPI performance highlights the Roku player and viewers in Arizona as under-performing due to high rebuffering during the selected period.

Based the Experience Overview highlights, use the Trends page for more detailed drill-downs or the Real-Time dashboard to set and monitor real-time session performance by key KPI thresholds.

SPI Diagnostics

The Improvement Opportunities in the Summary Panel enable you to quickly create single-click filters, instantly refreshing the diagnostic metric widget and dimension data, and setting up dimensions for more detailed anomaly discovery. For more information on diagnostics of the AI alerts, see SPI and Drill Down Diagnostics.
