Custom Dashboards for ECO



Custom dashboards enable the combination of widgets and display options to highlight the insights that are most meaningful to your users and business. Customized widgets display metrics and dimensions in table, summary metric, distribution, time series, and bar.

By selecting ECO as the data source when creating a custom dashboard, you can have the custom dashboard used for ECO, such as tracking the app crashes on different hardware to analyze the app performance.

For more details regarding custom dashboards creation steps and features, check Custom Dashboards.

Use Cases

A Map Chart Creation

Custom dashboards allow you to easily display metrics and dimensions in a map chart format within widgets. The map chart enables an intuitive way to check metrics from geographical perspectives, such as country, state, and city.

  1. On the Custom Dashboard main page, click Add New Dashboard in the top right corner, select APP from the Data Source list, and click Create.

  2. From the date picker, select the time range, and click Apply. The default time range is Last 6 hours. In this use case, use Last 7 days.

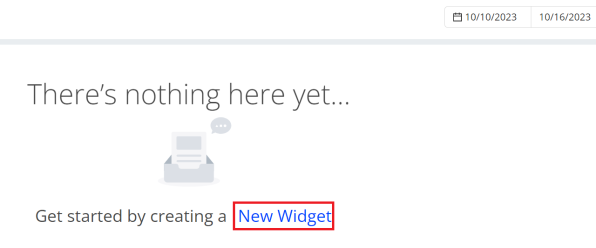

  3. To go to the Add New Widget page, click New Widget.

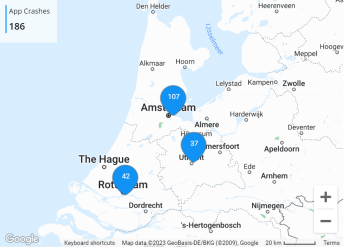

  4. Fill out the Widget Name field, select the suitable items, and click OK. The map chart displays in the widget.

    • Widget Name: App Crash

    • Visual Map: Map

    • Metric: App Crashes

    • Geo Dimension: Cities

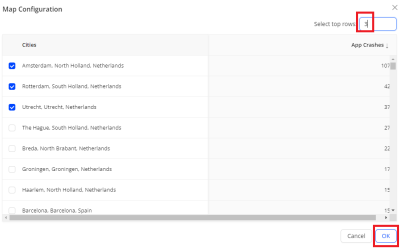

  5. If you want the map to show the top 3 cities, click the Map Configuration icon, fill out 3, and click OK.

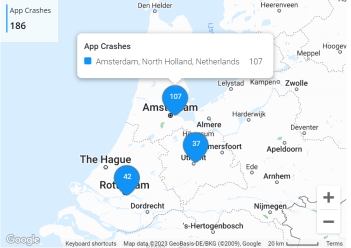

Hovering over a city, such as Amsterdam, reveals the city name and metric values.

Multiple Data Sources

Custom dashboards allow you to use multiple data sources when creating a single custom dashboard to enhance analysis across your video streams, ads, and application performance.

Note: Page-level filters are not available when using multiple data sources.

  1. On the Custom Dashboard main page, click Add New Dashboard in the top right corner. In the pop-up window, click Multiple Data Sources and select VIDEO and APP from the Data Source list, and click Create.

  2. From the date picker, select the time range, and click Apply. The default time range is Last 6 hours. In this use case, use Last 7 days.

  3. To go to the Add New Widget page, click New Widget.

  4. Fill out the fields, select the suitable items, and click OK. The table to track video performance displays in the widget.

    • Data Source: VIDEO

    • Widget Name: Video Start Failures

    • Visual Map: Table

    • Metrics: VSF

    • Dimension: Device Model

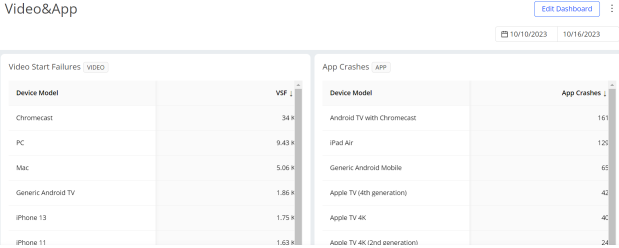

  5. Fill out the fields, select the suitable items, and click OK. The table to track app performance displays in the widget.

    • Data Source: APP

    • Widget Name: App Crashes

    • Visual Map: Table

    • Metrics: App Crashes

    • Dimension: Device Model

Overall Analysis

Custom dashboards allow you to easily analyze app and web performances and related factories, such as the number of active devices, app crashes, web errors, and active devices over the time, by creating different formats of widgets with necessary metrics.

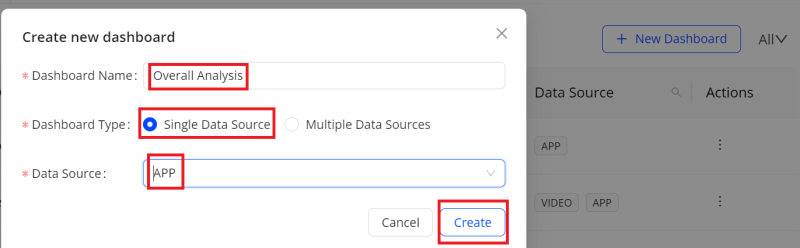

  1. On the Custom Dashboard main page, click Create New Dashboard in the top right corner, fill out the dashboard name, choose Single Data Source, and select APP from the Data Source list, and click Create.

  2. From the date picker, select the time range, and click Apply. The default time range is Last 6 hours. In this use case, select October 16 and October 19.

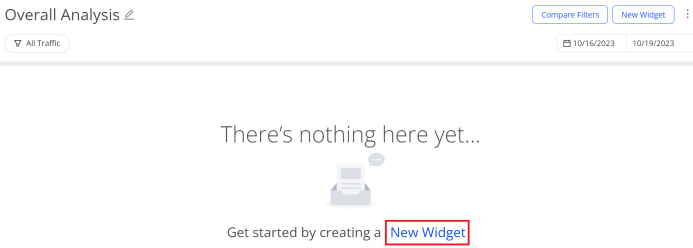

  3. To add new widgets, click New Widget.

  4. Fill out the Widget Name field, select the suitable items, and click OK. Create widgets one by one based on the table.

    Widget Name Visual Map Filter Comparison Metric Dimension Granularity Filters
    Active Devices Summary Metric N/A Active Devices N/A N/A N/A
    App Sessions Summary Metric N/A App Sessions N/A N/A N/A
    User Active Time Summary Metric N/A User Active Time N/A N/A N/A
    Avg Minutes Per Page Summary Metric N/A Avg Minutes Per Page N/A N/A N/A
    Where do Spanish users come from? Bar On Active Devices Cities N/A

    • Android

    • Web Player
    App crashes over the time Time Series On App Crashes (%) N/A 15 Mins

    • Android Tablet

    • Android Phone
    Active devices over the time (per app) Time Series On Active Devices N/A 5 Mins

    • Android

    • Web Player
    Web errors per browser (PC and Android) Table On

    Active Devices

    Web Errors (%)

    		 Browser Name N/A

    • Android Tablet Web

    • Android Phone Web

    • Web

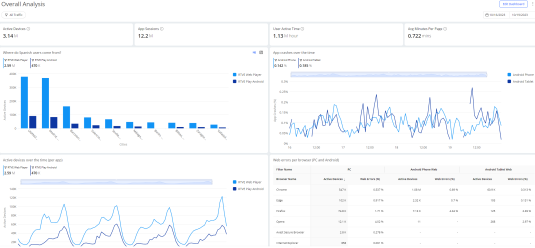

  5. Check data from the created widgets.
